SKU 08-07403-001

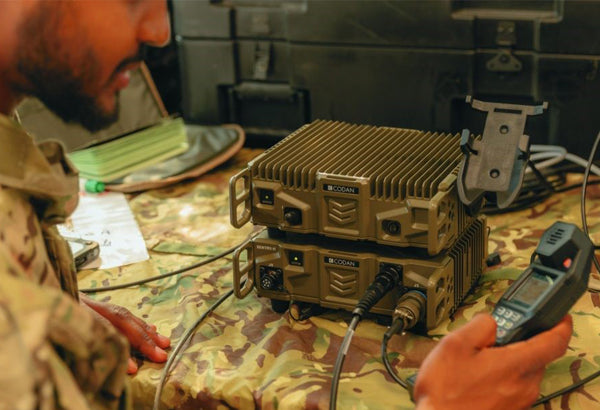

Codan’s Sentry-H 6120-BM is designed for maximum reliability and efficiency and a wide range of DC input voltages for both military vehicle and base installations. The in-built power amplifier provides full-duty cycle performance across the complete HF band for all supported modes. The 6120-BM provides 150 W of power so that you get the best and most reliable communications, without the need for an external power amplifier. Whether you’re configuring a base or mobile system, the compact and highly integrated unit along with the robust handset makes for quick deployment.


Key features:

  • Software Defined Radio
  • 150 W power output (expandable to 500W/1kW)
  • Wide range 10 V to 36 V DC input
  • Rugged and waterproof MIL-STD810G design
  • Rugged smart handset with colour display and integrated GPS
  • Intuitive icon based colour display
  • Multilingual user interface
  • Embedded GPSIP/Ethernet/Wi-Fi/USB connectivityExceptional RF performance
  • 2nd generation digital voice (TWELP)
  • Digital voice message call
  • Presets
  • Standards based:
    • MIL-STD-188-110A/B (STANAG 4539) Data (up to 19k2 bps)
    • MIL-STD-188-110D (Appendix C)
    • FED-STD-1045
    • MIL-STD-188-141D (Appendix A, Appendix C)
    • MIL-STD-188-141B ALE (JITC certified)
    • 3G ALE (STANAG 4538)
  • AES-256/CES-128 COMSEC
  • ECCM - up to 25 hops/sec
  • H-250 Accessories support
  • Virtual Control Point (VCP) compatible
  • Wide range of supported peripherals


    Download datasheet
