SKU 3520-PSU

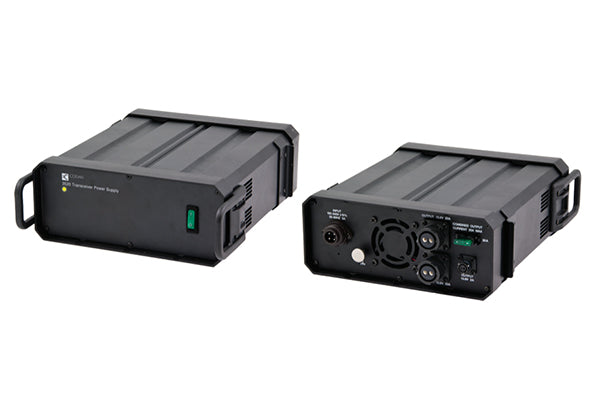

The 3520 transceiver supply is an extremely rugged, lightweight and compact unit that provides stable DC power from AC mains fort he 2110 series transceivers. The universal AC mains input is protected against over-voltage, excessive inrush currents and voltage transients. The DC output is protected against short-circuit, under-voltage and over-voltage in the case of fault conditions and features fold-black current limiting. If the temperature becomes too high for the transceiver supply, the device will switch off automatically. An error status will be indicated with the different colors by the LED light.


Key features:

  • Extremely low RF noise
  • Suits 25 and 125 W systems
  • Universal mains input
  • 25 A output current
  • Supports standby battery
  • Protected against fault conditions
  • Fault status indicator
  • Lightweight and compact
  • MIL-STD 810G environmental
  • Installs into 2110 cradle
  • Shock mount available
  • Auxiliary 12 V DC output for powered speaker


    Download datasheet
