DBS SAPPHIRE-BTX CAMERA BACK TRANSMITTER

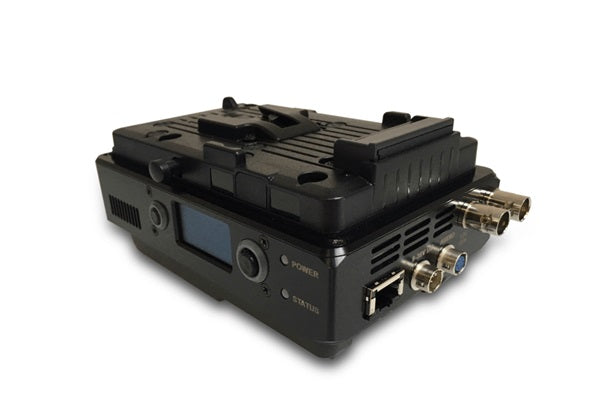

The Sapphire-BTX camera-back transmitter, integrates a true 4K HEVC encoder with a COFDM modulator, creating a single, compact package suitable for camera-back mounting. The Sapphire-BTX is equipped with a single video input capable of 3G HD-SDI, 6G and 12G thus allowing video formats to UHD. Back-to-back V Lock or Anton Bauer battery plates facilitate pass-through power, whilst an additional external power connector is provided at the base. Analogue stereo audio inputs are supported as well as camera control and Tally interfaces. An ASI transport stream interface is provided to facilitate easy connection to other modulation systems. Sapphire-BTX is equipped with a high-quality, low-latency H.265 (H.264 is also available) encoder capable of UHD and HD formats in 10bit 4:2:2 with automatic HDR support. Up to 8 stereo pairs of audio in either MPEG-1 layer 1 or PCM format (4 stereo pairs in AAC-LC) can be extracted and encoded by the Sapphire-BTX whilst analogue audio inputs with power are included for direct microphone connection. Camera control and transmitter settings are accessible through a single colour panel on the side or using the web browser interface. Bi-directional camera control is a hardware option in the Sapphire-BTX.
Key features:
- Low latency UHD/HD resolution encoding (typically 35mS input to output)
- Single input interface supporting 3G HD-SDI, 6G and 12G
- Interchangeable RF modules
- Optional BI-directional camera control modules
- Supports Anton Bauer and V lock battery plates
- Support for UHD/HD HDR and also timecode (film industry) signal insertion
- ASI out for onward connectivity
- IP streaming and web browser control
Available models:
- BTX-200290-V 2-2.9GHz TX VLock
- BTX-310360-V 3.1-3.6GHz TX VLock
- BTX-550600-V 5.5-6GHz TX VLock
- BTX-200290-AB 2-2.9GHz TX Anton Bauer
- BTX-310360-AB 3.1-3.6GHz TX Anton Bauer
- BTX-550600-AB 5.5-6GHz TX Anton Bauer
