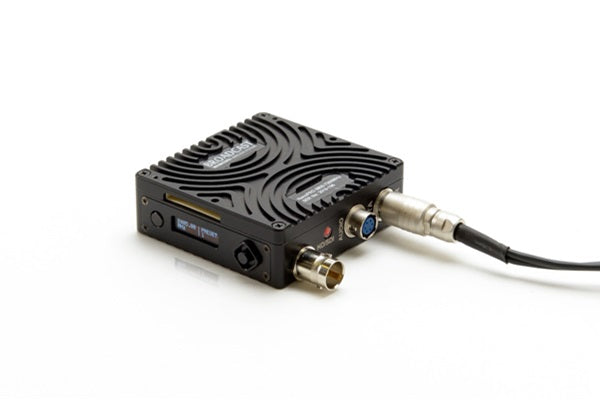

DBS NANO PRO TX
DBS has built upon the outstanding features of the award-winning Cobham NanoHD TX to create the ultimate PoV/miniature broadcast transmitter. The DBS NanoPRO HD Transmitter is an ultra-miniature COFDM digital video transmitter, designed specifically for Point-of-View (PoV) and body-worn applications. With proven Cobham COFDM and H.264 encoder technology at its core, exceptionally small size and ultra-low power consumption (typically 7W), the DBS NanoPRO Transmitter enables production teams to offer viewers stunning high definition images from the heart of the action, in situations never previously possible due to equipment size and battery run-time constraints. The small size and ultra-low power consumption make the DBS NanoPRO TX ideal for UAV ‘Octocopter’ installations, enabling true long range HD broadcasting from these increasingly popular devices for the first time. Optional lightweight, low power consumption amplifiers are also available for even greater range capability. The transmitter employs ultra-low latency High Profile H.264 (MPEG-4 AVC) encoding for excellent image quality retention over the wireless link and supports SDI & HD-SDI video input formats up to 1080p50/59. The DBS NanoPRO Transmitter is supplied in a slim-line, fan-cooled, aluminium lightweight case and features industry standard connectors for RF (SMA), Video (BNC), Power/Data (Hirose), Audio (Hirose) and control (mini USB). An integrated joystick control panel and OLED display are provided for control and monitoring of all parameters.
Key features:
- Slimmer profile for PoV applications
- Balanced Mic/Line level analogue audio inputs with P48 mic powering
- Indicators for POWER, VIDEO LOCK and RF ON
- Industry-standard connectors for VIDEO, POWER and AUDIO INPUTS
- Fan cooling for enhanced performance and reliability
- Integrated control panel and status display
- Optional camera mounting bracket converts your DBS NanoPRO into a cameraback TX
Available models:
- NanoPro Transmitter BNC 1.98-2.7GHz
- NanoPro Transmitter BNC 3.0-3.5GHz
- NanoPro Transmitter BNC 5.5-6GHz
- NanoPro Transmitter BNC 7.0-7.5GHz
- N Type Camera Mount Bracket
